VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC
  • VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC
  • VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC
  • VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC
Place of Origin China
Markenname VEIKONG
Zertifizierung CE IEC ISO9001
Model Number VFD500
Minimum Order Quantity 1
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union,T/T,L/C,D/A,D/P,PayPal
Supply Ability 15000pcs per Month
Produktdetails
Product Name VEIKONG VFD500 Inverter for Motor Speed Control with Built-in PID and PLC Capabilities Voltage 380V
Output 3 Phase Application Textile,packaging,extruder,fans,pumps,CNC,hoist And Crane,etc
Control Mode VF,SVC,VC,torque Control Starting Torque 0.25HZ/150% SVC ,0HZ/180%FVC
Highlight Veikong VFD 500, 45kw Variable Frequency Inverters, Veikong 3 Phase Ac Drive
Hervorheben

45KW variable frequency inverter

,

VFD500 inverter with PID

,

VEIKONG inverter with PLC
Produkt-Beschreibung
VEIKONG VFD500 Inverter: Integrated Motor Drive with Built-in PID and PLC Capabilities
Product Specifications
Attribute Value
Product Name VEIKONG VFD500 Inverter for Motor Speed Control with Built-in PID and PLC Capabilities
Voltage 380V
Output 3 Phase
Application Textile, packaging, extruder, fans, pumps, CNC, hoist and crane, etc.
Control Mode VF, SVC, VC, torque Control
Starting Torque 0.25HZ/150% SVC, 0HZ/180%FVC
Product Details
Product Name Inverter 30KW 37KW 45KW 55KW 440V 480V
Voltage 380V-480V
Frequency 50HZ-60HZ
Weight Depend On Model
Warranty 24 Months
Brand VEIKONG
Protection level IP20
GPRS Support Remote Control
Key Features
  • STO (Safe Torque Off) function
  • TCP protocol support
  • Fire mode for emergency situations
  • Rich communication card options
VFD500 Product Features
  • IGBT module design instead of single tube IGBT
  • Support LED, optional dual display keypad, optional LCD keypad
  • Open loop and close loop control
  • Optional STO function
  • Fire mode function
  • Modbus RTU, optional Modbus TCP, Can-Open, Profinet, Ethercat communications
  • High frequency up to 3000Hz
  • PC TOOL software
  • Energy-saving function
  • OEM / Customized solutions

The VFD500 series frequency inverter is a powerful high-performance current vector inverter, which can realize the control of the asynchronous motor, V/F control mode, one machine with multiple functions. It can realize multiple frequency switching, and can be used for textile, drives for automated production equipment such as papermaking, wire drawing, machine tools, packaging, and food.

Technical Data
Type Terminal Symbol Terminal Name Terminal Function Description
Analog input voltage +10V Input voltage 10.10V±1%
Analog input voltage +10V Input voltage Maximum output current:10mA, it provides power supply to external potentiometer with resistance range of:1KΩ~51KΩ
Analog input voltage GND Analog ground Internal isolation from COM
Analog input voltage AI1 Analog input1 Input voltage:0~10V:Impedance 22KΩ, Maximum input voltage
Analog input voltage AI1 Analog input1 Input current:0~20mA:Impedance 500Ω, Maximum input current
Analog input voltage AI1 Analog input1 Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input
Analog input voltage AI2 Analog input 2 Input voltage:0~10V:Impedance 22KΩ, Maximum input voltage
Analog input voltage AI2 Analog input 2 Input current:0~20mA:Impedance 500Ω, Maximum input current
Analog input voltage AI2 Analog input 2 Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input
Analog input AO1 Analog output 1 Output voltage:0~10V:Impedance ≥10KΩ
Analog input AO1 Analog output 1 Output current:0~20mA:Impedance 200Ω~500Ω
Analog input AO1 Analog output 1 Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output
Analog input AO2 Analog output 2 Output voltage:0~10V:Impedance ≥10KΩ
Analog input AO2 Analog output 2 Output current:0~20mA:Impedance 200Ω~500Ω
Analog input AO2 Analog output 2 Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output.
Analog input GND Analog ground Internal isolation from COM
Product Images

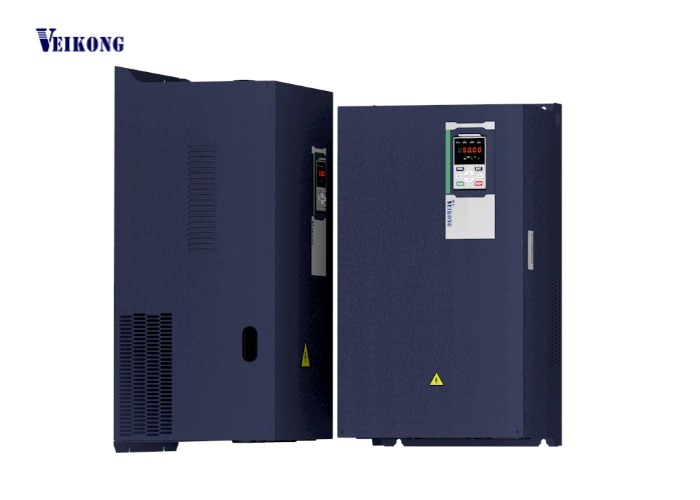

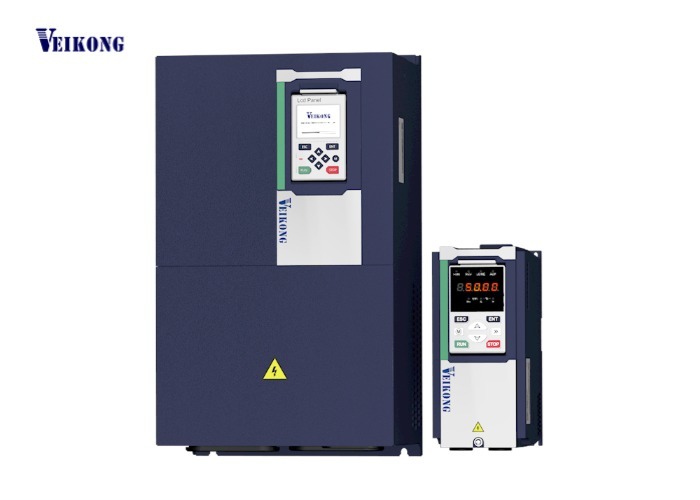

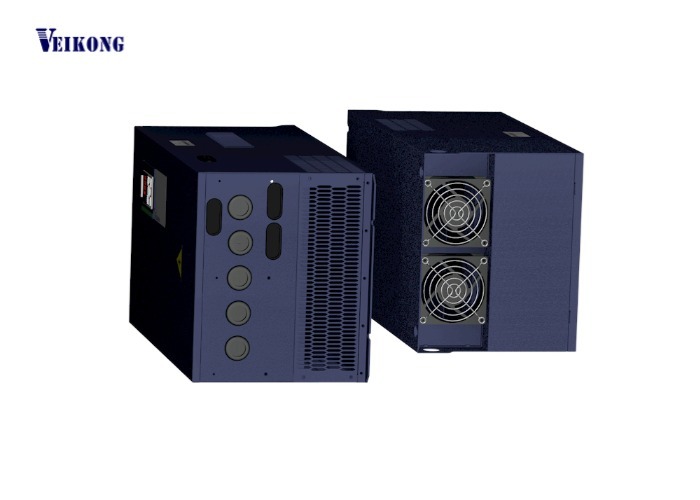

VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC 0 VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC 1 VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC 2 VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC 3 VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC 4 VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC 5
