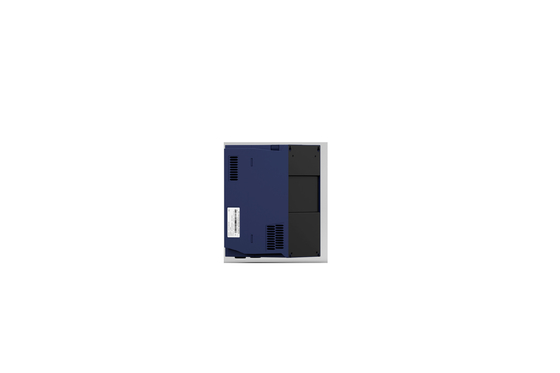

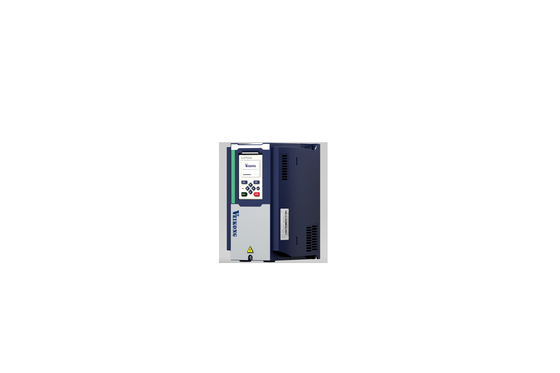

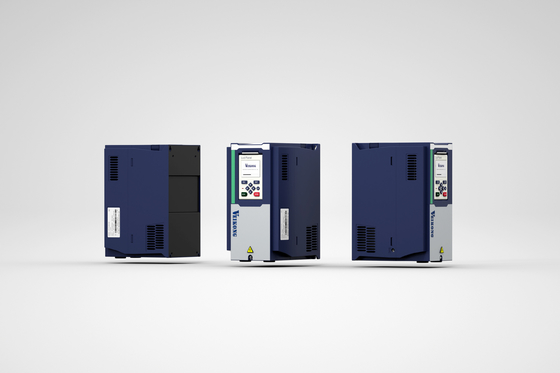

Single Phase And Three Phase Input Variable Speed Drive with and 7 DI Terminals

High - performance Vector Control : Supports open - loop and closed - loop vector control for induction motors, enabling precise speed and torque regulation, ideal for high - precision applications.

Rich Functionality

• Speed Tracking : Responds quickly to motor status changes, ensuring stable operation during load fluctuations.
• Remote & PC Control : GPRS enables remote parameter adjustment via APP, while PC tools allow comprehensive on - site monitoring and setup.
• PID Control : Optimizes pressure and flow control in fan and pump systems for energy savings.
• Multi - speed & Jog : Offers 16 - speed settings and jog function for diverse operation and easy debugging.

Robust & Reliable

• Durable Build : Withstands harsh environments; high - quality components aim for long lifespan
• Full Protection : Overvoltage, overcurrent, and overheating safeguards ensure equipment safety.

Flexible I/O : Standard and optional I/O boards provide various digital and analog terminals for seamless integration with industrial devices.

Efficient Communication : Standard Modbus support enables easy connection with other automation equipment for centralized control.

Technical Parameters:

P00.00 User password

P00.03 reset

P00.04 motor control mode

P00.05 Running mode

P00.06 Source of operation command

P00.07 Numeric frequency setting

P00.08 Rotation direction

P01.00 Main frequency source selection (A)

P01.06 Maximum frequency

P01.08 Upper limit frequency

P02.00 Starting mode

P02.04 Pre-excitation current

P02.05 Pre-excitation time

P02.08 Stop method

P03.01 Acceleration time 1

P03.02 Deceleration time 1

Applications:

The VEIKONG VFD500, a high-performance general-purpose AC drive, finds extensive applications across multiple industries:

1. Textile Industry : It is utilized to regulate the speed of spinning machines, looms, and other textile equipment. By ensuring precise speed control, it facilitates consistent yarn production and high-quality fabric weaving. For instance, in spinning processes, the VFD500 can adjust the motor speed to manage yarn twist and tension, preventing breakages and enhancing product quality.

2. Papermaking Industry : It is applied for controlling paper machine drives, including the main drive, wire section drive, and press section drive. The VFD500 plays a crucial role in maintaining a uniform paper-making speed, essential for producing paper with consistent thickness and quality. Furthermore, it can adapt the speed to different paper grades and production requirements, optimizing energy usage.

3. Tension Control Systems : In industries like wire and cable manufacturing, and packaging, the VFD500 is employed for precise tension control. It can accurately adjust the motor speed to uphold stable tension on the material being processed. For example, in wire drawing, it ensures consistent tension to avoid wire breakage and ensure the accuracy of the final product.

4. Fans and Pumps : Widely used in HVAC (Heating, Ventilation, and Air-Conditioning) systems, water treatment plants, and industrial processes. In HVAC systems, the VFD500 regulates fan and pump speed based on load requirements. For instance, in a large office building, it can adjust fan speed in the air-handling units as per temperature and humidity demands, reducing energy consumption. In water treatment plants, it controls pump speed to manage water flow rate and pressure, optimizing the treatment process.

5. Machine Tools : Facilitates precise speed control for spindle motors and feed motors in machine tools, crucial for achieving high-precision machining operations. For example, in a CNC (Computer Numerical Control) lathe, the VFD500 can accurately control spindle speed for different cutting operations, ensuring smooth cutting and high-quality surface finishes.

6. Packaging and Food Industry : Controls conveyor belts, filling machines, and other equipment. In packaging, it adjusts conveyor belt speed to align with the packaging process speed, ensuring efficient packaging. In the food industry, it regulates mixer, grinder, and other processing equipment motors to meet diverse food production process requirements.

7. Automated Production Lines : Plays a critical role in various automated production equipment by coordinating different motor operations to ensure smooth production line functioning. It can communicate with control systems like PLCs (Programmable Logic Controllers) to achieve complex automation functions, enhancing production efficiency and product quality.

Customization:

Product Customization Services for VEIKONG VFD Variable Frequency Drive:

Brand Name: VEIKONG

Model Number: VFD500

Place of Origin: China

Certification: CE IEC

Minimum Order Quantity: 20

Price: Negotiable

Packaging Details: Paper carton or wooden case based on different power range

Delivery Time: 7 working days in general, depend on quantity

Payment Terms: T/T or other payment term based on different request and situation

Supply Ability: 10000/ month

Keypad options: LCD, Shuttle Display With Potentiometer, LED

Overload Capacity: 150% For 60s, 200% For 3s

Enclosure: IP20/IP21

Extension IO board: Support With Options

Size: Depend On Power Range

Keywords: Adjustable Frequency Drive, Variable Frequency Inverter, Adjustable Frequency Inverter

Support and Services:

The Product Technical Support and Services for the VFD Variable Frequency Drive include:

- 24/7 technical support hotline for immediate assistance

- On-site maintenance and troubleshooting services

- Remote diagnostics and programming support

- Training programs for operators and maintenance staff

- Warranty services for product performance issues

Packing and Shipping:

Product Packaging:

The VFD Variable Frequency Drive product is carefully packaged in a sturdy cardboard box to ensure safe transportation. Inside the box, the VFD is wrapped in protective foam to prevent any damage during shipping.

Shipping:

Orders for the VFD Variable Frequency Drive product are processed quickly and efficiently. We use reliable shipping carriers to deliver the product to your doorstep in a timely manner. Tracking information will be provided so you can monitor the status of your shipment.

FAQ:

Q: What is the brand name of this VFD product?

A: The brand name is VEIKONG.

Q: What is the model number of this VFD product?

A: The model number is VFD500.

Q: Where is this VFD product manufactured?

A: This VFD product is manufactured in China.

Q: What certifications does this VFD product have?

A: This VFD product is certified with CE and IEC.

Q: What is the minimum order quantity for this VFD product?

A: The minimum order quantity is 20 units.
